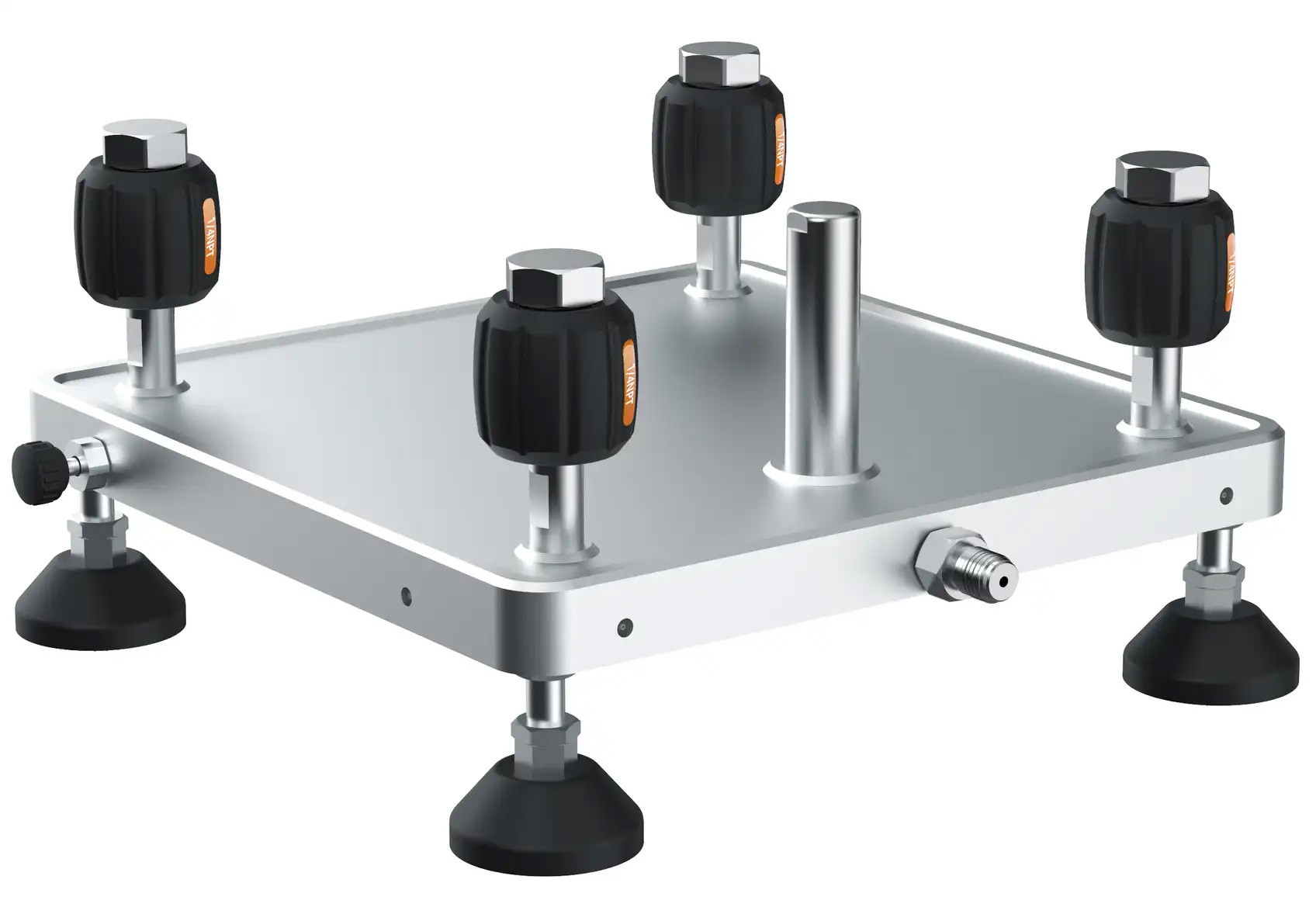

FAK-12X series pressure manifolds are designed for expanding pressure test ports during pressure calibration. The Additel 121 pressure manifold is used for pneumatic pressure calibration up to 3600 psi (250bar), while the FAK 123 manifolds is compatible to hydraulic pressure applications up to 15,000 psi (1,000 bar).  A filter is built-in with the 121 pneumatic pressure manifold to prevent contamination introduced by devices under test.  There are four hand-tight quick connectors pre-installed on each manifold.

Features

1. FAK 121 used for pneumatic pressure calibration up to 3600 psi (250bar)

2. FAK 123 used for hydraulic pressure applications up to 15,000 psi (1,000 bar)

3. Filter is built into the manifold

4. Four hand-tight Quick Connectors
